How to Configure Atria to Set Users' Proxy Addresses Attribute in AD

Overview​

This article provides a guide on how to configure Atria to set users' proxyAddresses attribute in Active Directory (AD) during provisioning.

  • Considerations:
  1. This configuration is optional and depends on your requirements.
  2. Once implemented, the option to set proxyAddresses can be toggled per customer.
  3. If enabled, this configuration allows setting proxyAddresses in AD even if a user is not a mail-enabled object.

Configuration Process - Customer by Customer​

Atria Portal Setup​

  1. Make sure that you can navigate to:

Customers > Configuration > Customer List > Display Properties

Set User Proxy Address

If not available, enable this page for the Service Provider Administrator role under:

Configuration > Page Manager > Menu

  1. Using a Service Provider Administrator account, in the Atria Home Page, navigate to Display Properties (as shown above), then filter the list to "Customers" Type:
Set User Proxy Address
  1. On the left pane, under Management, select New Property and create a property with the following details, then Save it:
Set User Proxy Address
  1. After saving the new property, you will notice that when creating a new customer or editing an existing customer, the property added is now present with a default value that is not ticked, meaning it is set to FALSE.
Set User Proxy Address
info

Only enable this property for customers that are expected to "Set Users Proxy Addresses in AD" by default.

Provisioning Rule Creation​

The next step involves using Atria's Provisioning Manager. If you are unfamiliar with this, refer to our guide:

Atria Provisioning Manager

Now that the property is created, let's create the rules associated with this configuration. Log in to your Provisioning Server and open the Provisioning Manager.

info

By default, there is a shortcut on the Start Menu. Otherwise, it will be located in the following:

  • Version 12.13: C:\Program Files (x86)\Automate101\Atria\Provisioning Engine\ProvisioningManager.exe
  • Version 15+: C:\Program Files\Automate101\Atria\Provisioning Engine\ProvisioningManager.exe
Set User Proxy Address
  1. In the Provisioning Manager, set up the rules with the following details:

Get SetUserProxyAddresses Setting​

  • Location: Default Rule Store > Events > User > PreProvision > After
  • Action: Add a New Rule named Get SetUserProxyAddresses Setting, then Save after creating the rule.

General Tab:

  • Tick Rule enabled

Action Tab:

  • Action: SQL Command with 4 parameters
  • Description: Get SetUserProxyAddresses Setting
  • Property: setUserProxyAddresses
  • ConnectionString: {ConnectionString}
  • Command: Select Value from vw_PropertyValues where objectid = {CustomerObjectID} and property = 'setUserProxyAddresses'
  • Expand: True
  • Timeout: 0
Set User Proxy Address

If ProxyAddresses to be set Then​

  • Location: Default Rule Store > Events > User > Provision > After
  • Action: Add a New Rule named If ProxyAddresses to be set Then, then Save after creating the rule.

General Tab:

  • Tick Rule enabled

Condition Tab:

  • Condition: {setUserProxyAddresses} = "True"
  • Description: ProxyAddresses to be set
  • Tick Condition Enabled

Action Tab:

  • Action: Call with 1 parameter
  • Description: Set Users Email Addresses
  • Name: $CustomEmailAddressesSet
Set User Proxy Address

Clear ProxyAddresses​

  • Location: Default Rule Store > Events > User > Provision > After > If ProxyAddresses to be set Then
  • Action: Add a New Rule named clear ProxyAddresses, then Save after creating the rule.

General Tab:

  • Tick Rule enabled

Action Tab:

  • Action: Directory Attribute Set Object with 2 parameters
  • Description: clear ProxyAddresses
  • sAmAccountName: {Username}
  • Attribute: proxyAddresses
  • Value: (leave blank)
  • DCServer: {DCServer}
Set User Proxy Address

For Each Email Address​

  • Location: Default Rule Store > Events > User > Provision > After > If ProxyAddresses to be set Then
  • Action: Add a New Rule named For Each Email Address, then Save after creating the rule.

General Tab:

  • Tick Rule enabled

Action Tab:

  • Action: "For Each"
  • Description: For Each Email Address
  • Optional Parameter: 1
  • Item: Address
  • Array: EmailAddresses
  • Filename: (leave blank)
  • Classname: OleDbActions
    • Parms: $CustomAddEmailAddressToProxyAddresses
Set User Proxy Address

Add ProxyAddress​

  • Location: Default Rule Store > Events > User > Provision > After > If ProxyAddresses to be set Then > For Each Email Address
  • Action: Add a New Rule named Add ProxyAddress, then Save after creating the rule.

General Tab:

  • Tick Rule enabled

Action Tab:

  • Action: Directory Attribute Add Object with 2 parameters
  • Description: Add ProxyAddress
  • sAmAccountName: {Username}
  • Attribute: proxyAddresses
  • Value: {CurrentItem}
  • DCServer: {DCServer}
Set User Proxy Address
info

Make sure all rules are properly set with the right values and hierarchy as shown on the screenshots

Apply Changes​

Restart the AtriaProvisioningService both on your Primary Location and Remote Location (if applicable) for these rules to take effect.

Validation​

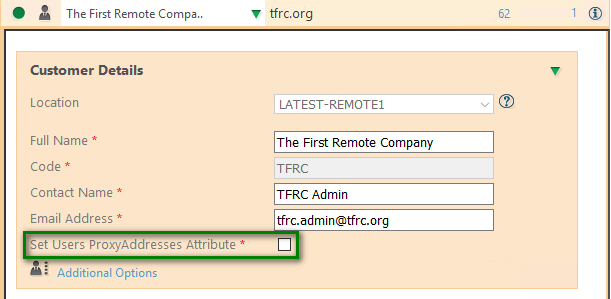

  1. On a customer, tick the Set Users ProxyAddresses Attribute – this will set it to TRUE:
Set User Proxy Address

  1. Provision the customer

  2. Navigate to a user (who is currently not mail-enabled), and add email aliases if none exist. If aliases are already present, no changes are needed.

Set User Proxy Address

  1. Provision the user.

  2. Validate in AD that the ProxyAddresses of that user has been added and reflected properly.

    • Via DSA:
Set User Proxy Address

  • Via PowerShell command:

    Get-ADUser -Identity <username> -Properties ProxyAddresses
Set User Proxy Address

Set Proxy Addresses Globally​

If you always add these values and want them added every time, you can enable the setting and remove the condition.
This will enable it globally for all customers rather than on a customer-by-customer basis.

You should end up with three main rule entries as below:

Set User Proxy Address

Under Default Rule Store > Events > User > Provision > After > If ProxyAddresses to be set Then --
Add a New Rule -- clear ProxyAddresses -- then hit Save after creating the rule.

  • General Tab:

    • Tick "Rule enabled"

  • Action Tab:

    • Action: "Directory Attribute Set Object" with (2) parameters
    • Description: clear ProxyAddresses
    • sAmAccountName: {Username}
    • Attribute: proxyAddresses
    • Value:
    • DCServer: {DCServer}
Set User Proxy Address

Under Default Rule Store > Events > User > Provision > After > If ProxyAddresses to be set Then --
Add a New Rule -- For Each Address -- this is your existing one.

  • General Tab:

    • Tick "Rule enabled"

  • Action Tab:

    • Action: "For Each" with (1) parameter
    • Description: For Each Email Address
    • Optional Parameter: 1
    • Item: Address
    • Array: EmailAddresses
    • Filename:
    • Classname: OleDbActions
      • Parms: $CustomAddEmailAddressToProxyAddresses
Set User Proxy Address

Under Default Rule Store > Events > User > Provision > After > If ProxyAddresses to be set Then > For Each Address -- Add a New Rule -- Add Address -- then hit Save after creating the rule.

  • General Tab:

    • Tick "Rule enabled"

  • Action Tab:

    • Action: "Directory Attribute Add Object" with (2) parameters
    • Description: Add ProxyAddress
    • sAmAccountName: {Username}
    • Attribute: proxyAddresses
    • Value: {CurrentItem}
    • DCServer: {DCServer}
Set User Proxy Address
info

Make sure all of this are properly set with the right syntax and formatting as shown in this section.

Restart the AtriaProvisioningService both on your Primary Location and Remote Location for these rules to take effect.

If you require any assistance or experience any issues, please contact us at support@getatria.com.
